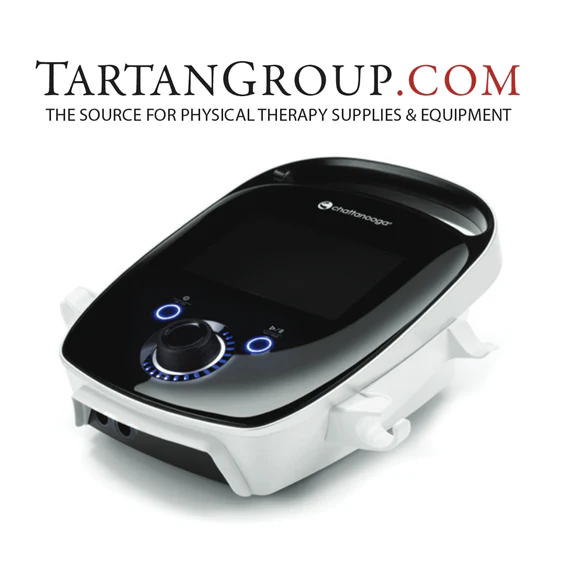

Intelect Legend 2 Combo 2CH or 4CH Ultrasound/Stim

The Next Generation in Electrotherapy

The Intelect® Legend 2 is a two-channel or four-channel combo electrotherapy system used with or without an optional integrated cart. For electrotherapy, 12 waveforms are included for use: VMS, Interferential, Premodulated, Symmetrical Biphasic, Asymmetrical Biphasic, HAN, Microcurrent, VMS Burst, Russian, Direct Current, High Volt and VMS FR. 1MHz and 3MHz ultrasound frequencies are also available for use independently or in combination with electrical stimulation. This equipment is to be used only under the prescription and supervision of a licensed medical practitioner.

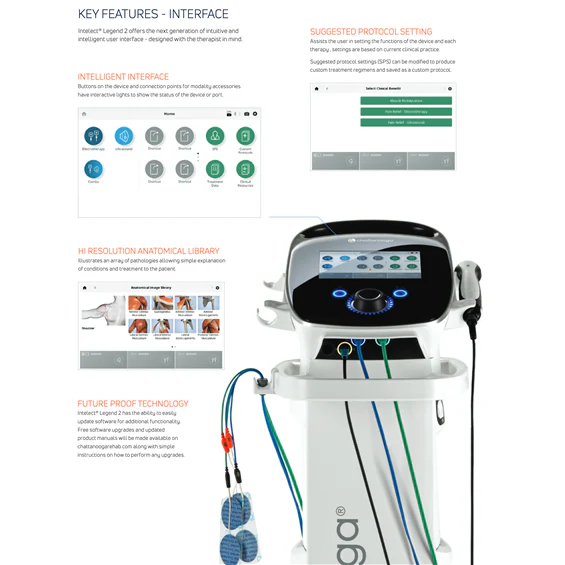

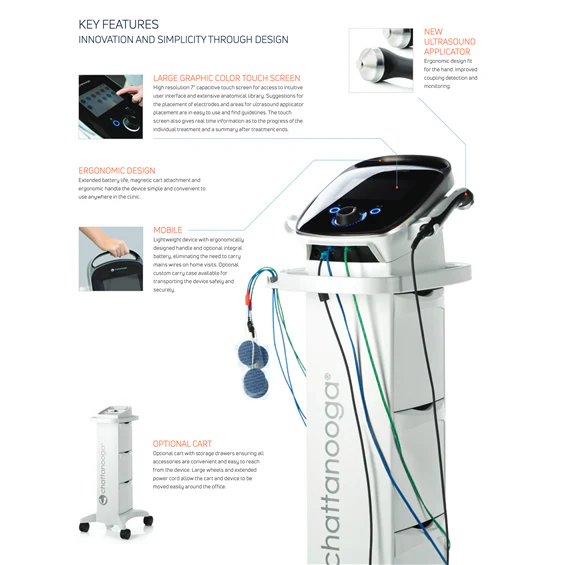

KEY FEATURES

• Hi resolution 7" touch screen
• On board memory and software upgrade feature
• Informative lights around the connection points

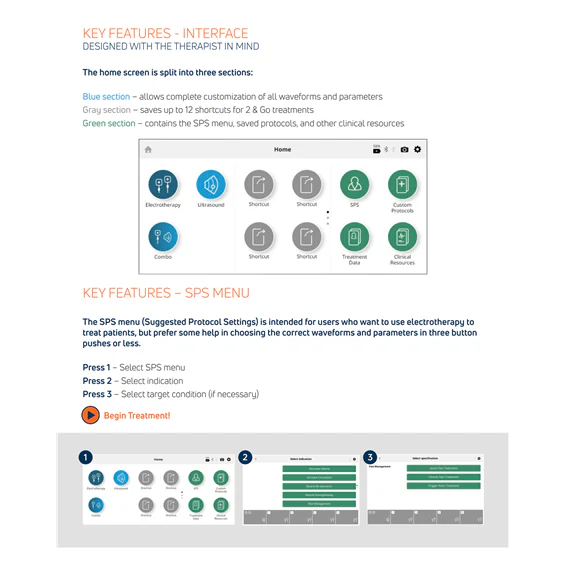

• Suggested protocol settings (SPS)
• 12 waveforms for electrical stimulation: VMS, Interferential, Premodulated, Asymmetic Biphasic, Symmetric Biphasic, High Volt, Microcurrent, Russian, VMS Burst, HAN, Direct Current, VMS FR
• 1 MHz and 3 MHz ultrasound

INDICATIONS TENS/NMES

• Relaxation of muscle spasms
• Prevention of retardation of disuse atrophy
• Increasing local blood circulation
• Muscle re-education
• Maintaining or increasing range of motion
• Immediate postsurgical stimulation of calf muscles to prevent venous thrombosis
• Symptomatic relief or management of chronic, intractable pain
• Post-traumatic acute pain
• Post-surgical acute pain

INDICATIONS ULTRASOUND: Relief of pain, muscle spasms and joint contractures that may be associated with conditions such as:

• Adhesive capsulitis
• Bursitis with slight calcification
• Myositis
• Soft tissue injuries
• Shortened tendons due to past injuries and scar tissues
• Capsular tightness
• Capsular scarring

TECHNICAL

• Input: 100-240V AC, 1.0 to 0.42A, 50/60Hz
• Electrical Class:  Class II
• Mode of Operation: Continuous
• Weight (no battery): 6.8 lbs. (8.2 lbs.)
• Cart Weight: 22.3 lbs.
• Cart Safe Working Load: 14.3 lbs.
• Legal Manufacturer: DJO LLC

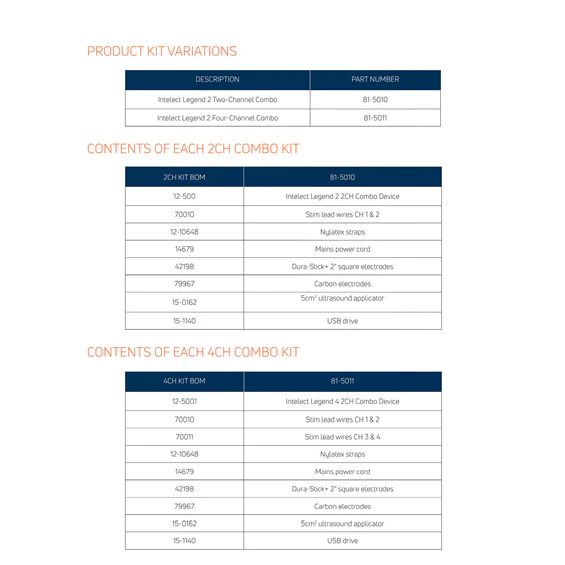

INCLUDED STANDARD ACCESSORIES:

• 81-5010 Intelect Legend 2 Two Channel Combo Set (or)
• 81-5011 Intelect Legend 2 Four Channel Combo Set
• 79967 Carbon Electrodes
• 42198 Dura-Stick+ 5cm Square Electrodes 4PK
• 70010 Stim Lead Wires CH 1&2
• 70011 Stim Lead Wires CH 3&4 (4CH Only)
• 12-10648 Nylatex Strap

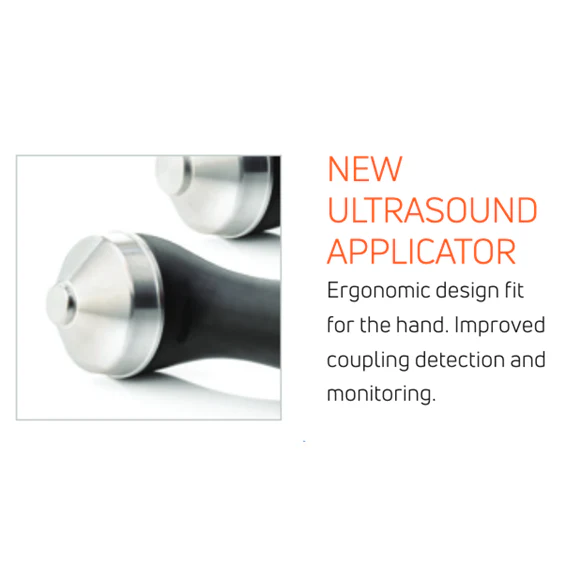

• 15-1062 5cm2 Ultrasound Applicator
• 14679 Power Cord

OPTIONAL ACCESSORIES:

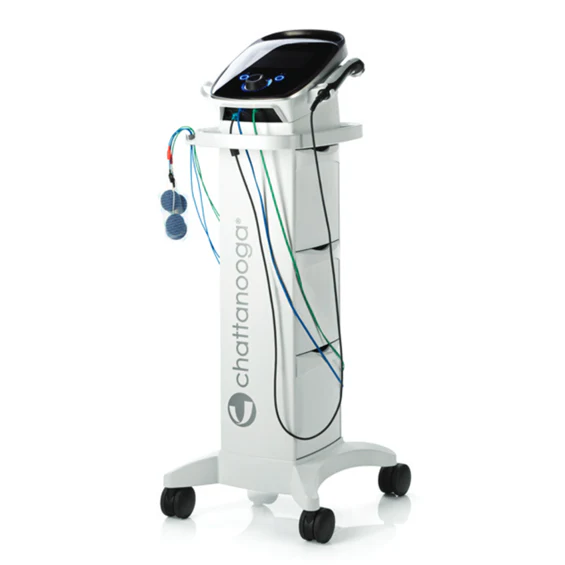

• 15-1136 Intelect Legend 2 Cart
• 14-1086 Intelect Legend 2 Battery
• 15-0160 1cm Applicator
• 15-0161 2cm Applicator
• 15-0163 10cm Applicator
• 4248-12 Ultrasound Gel (12 Bottles)
• 79967 6x8cm Carbon Electrodes (QTY 4)
• 15-1140 USB drive
