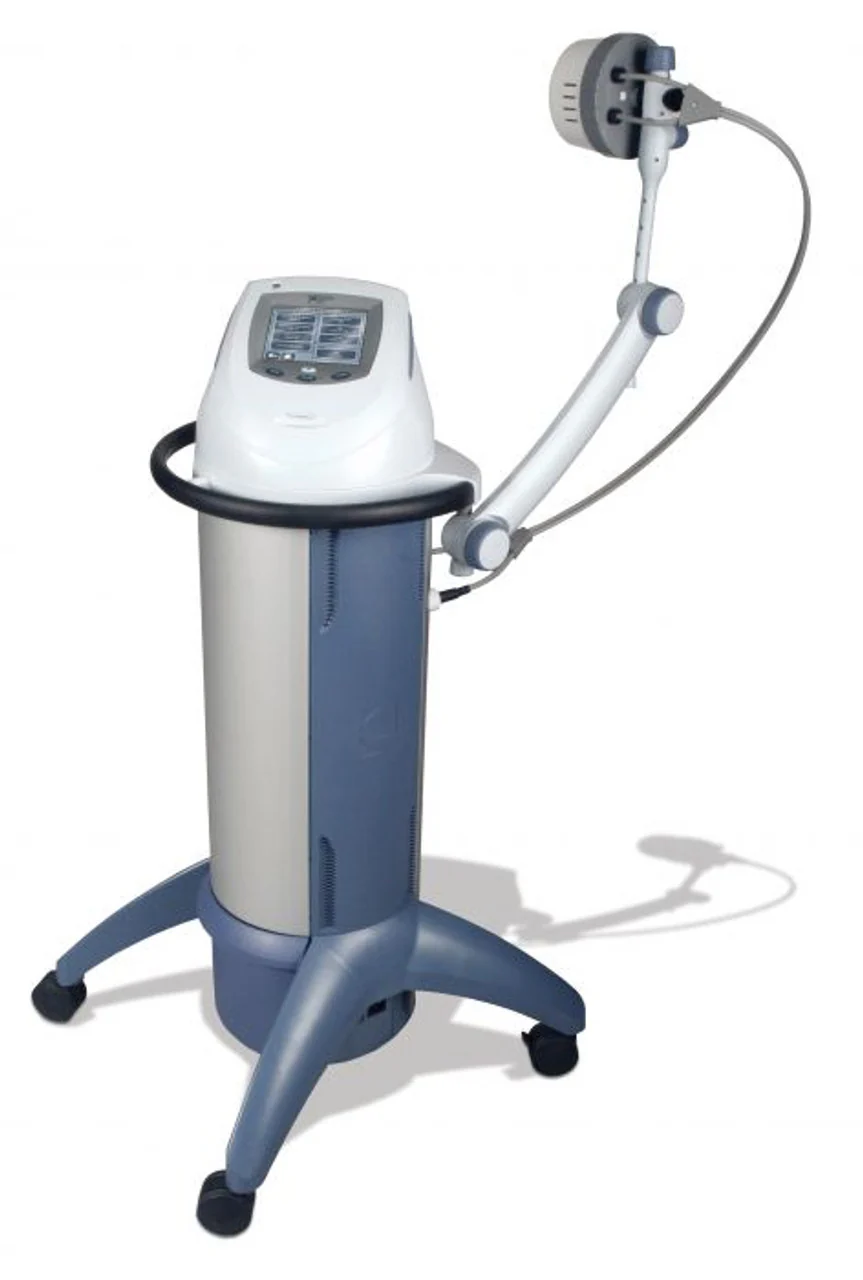

INTELECT® SHORTWAVE DIATHERMY 100 PACKAGE:

The ground-breaking innovations you've come to expect from Chattanooga with the safe, effective deep tissue heating therapy of shortwave diathermy.

The Intelect SWD100 offers the ground-breaking innovations you've come to expect from Chattanooga with the safe, effective deep tissue heating therapy of shortwave diathermy. With full-color touch-screen interface, onboard clinical resources, customizable treatment parameters and more, the Intelect SWD100 is remarkably intuitive and easy to use. Quickly begin treatment with one touch to the home screen and then pressing start. Ideal for: pain relief, reduction of muscle spasm, decreasing joint stiffness, contractures, increased blood flow.

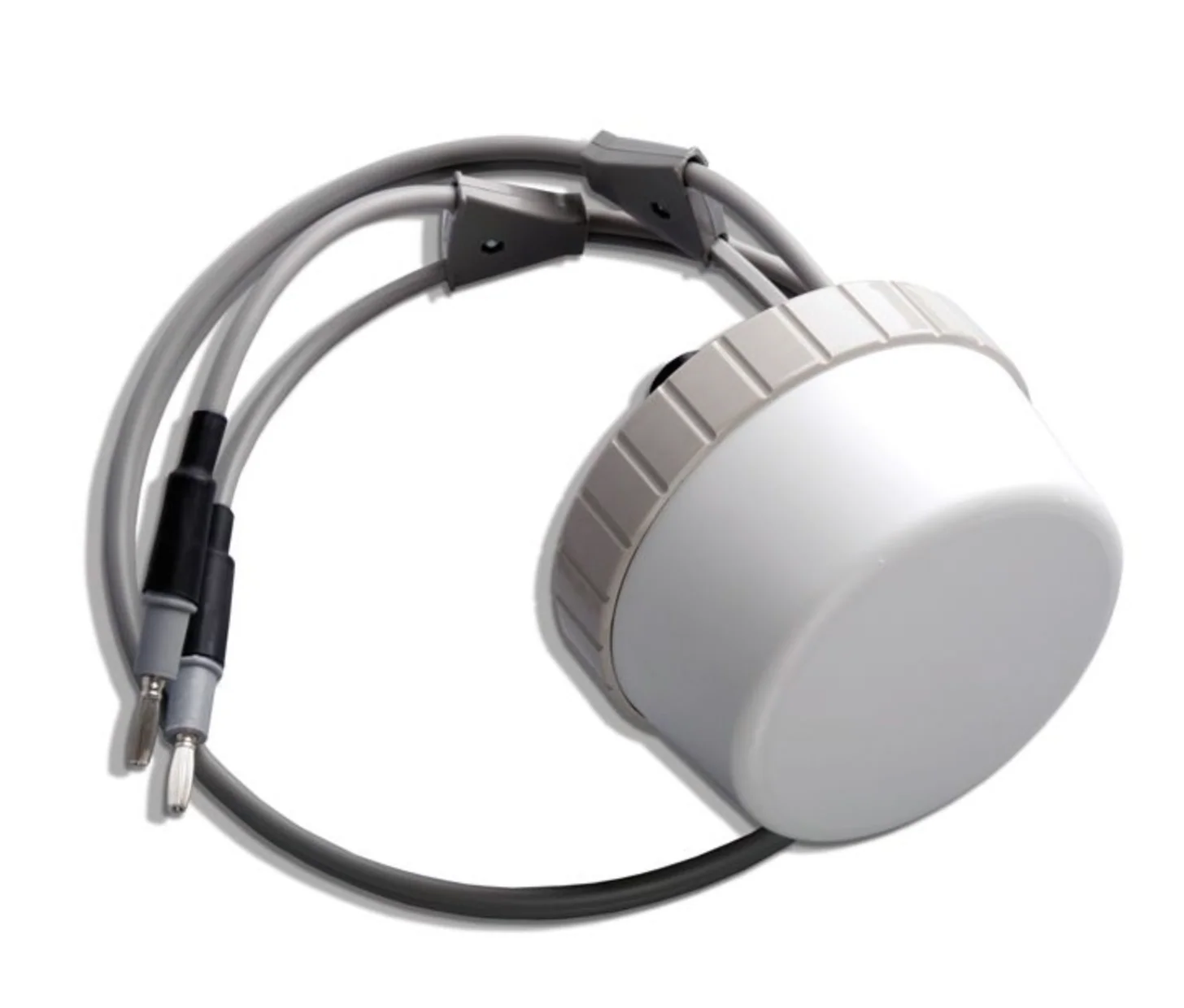

Standard Accessories Included in the 046-1600 Package: Inductive Drum (Monode), Connection Cable, Arm, Indica for Tube & Manual

Benefits

• Deep tissue heating over a large body area

• Treats both acute and chronic conditions with the convenience of hands-free

• Full color clinic resource library with applicator placement images, anatomical images, and pathologies

• Clinical product with fully adjustable parameters

FEATURES

• Touch-and-go treatment via user interface

• Full-color LCD screen • Clinical Educational Resources include: - Full-color graphics library of anatomical images and pathologies - Applicator placement images - Diathermy rationale - Diathermy contraindications

• Adjustable treatment timer

• Automatic resonance tuning

• Two output channels

• 360° Swivel rotation of touch-screen interface

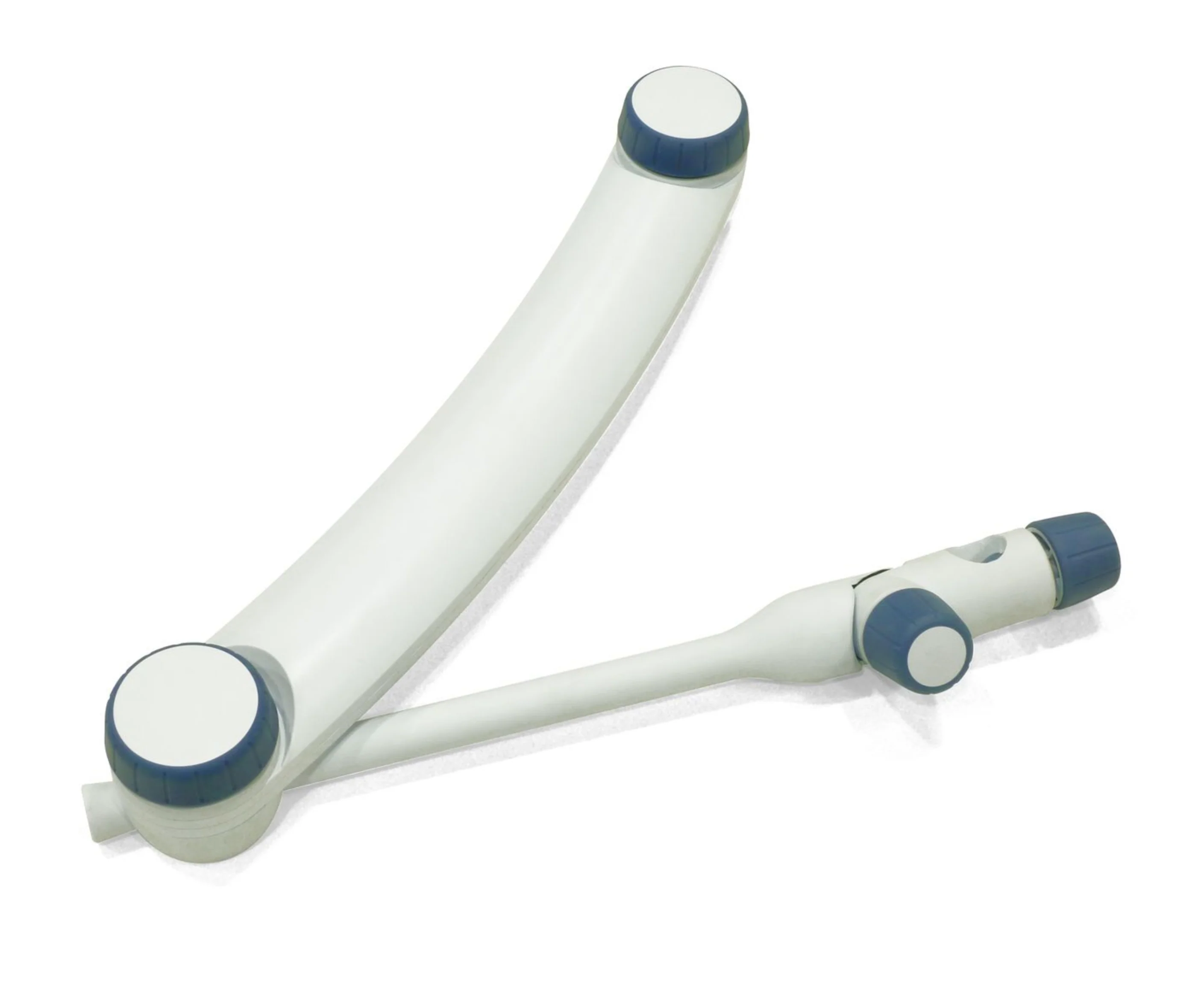

• Robust, multi-jointed, pivoting electrode arm

• Patient safety switch

• 200 User-defined protocol storage slots

• Patient Documentation of treatment sessions, pre and post treatment patient pain scales, pain mapping and pain types all captured on Patient Data Cards

• Two-year warranty

Standard accessories include: Inductive drum (Monode), connection cable, arm, indicator tube, and CD manual

Technical Specifications

Mains Power: 100-240 VAC, 50-60 Hz

Output Frequency: 27.12 MHz

Output Power: 100 W Continuous Mode 200 W Peak in Pulsed Mode

Weight: 60 lbs.

Dimensions (WxDxH): 24”x 12”x 45.5”

Pulse Width: 20-400 μsec

Pulse Rate: 10-800 Hz

Treatment Time: 1-60 minutes

Electrical Safety Class: Class B

Safety Tests: IEC/EN/UL 60601-1, IEC/EN/UL 60601-2-3
