Richmar DU3035 Portable Ultrasound Unit, US-PRO 2000 - 2nd Edition

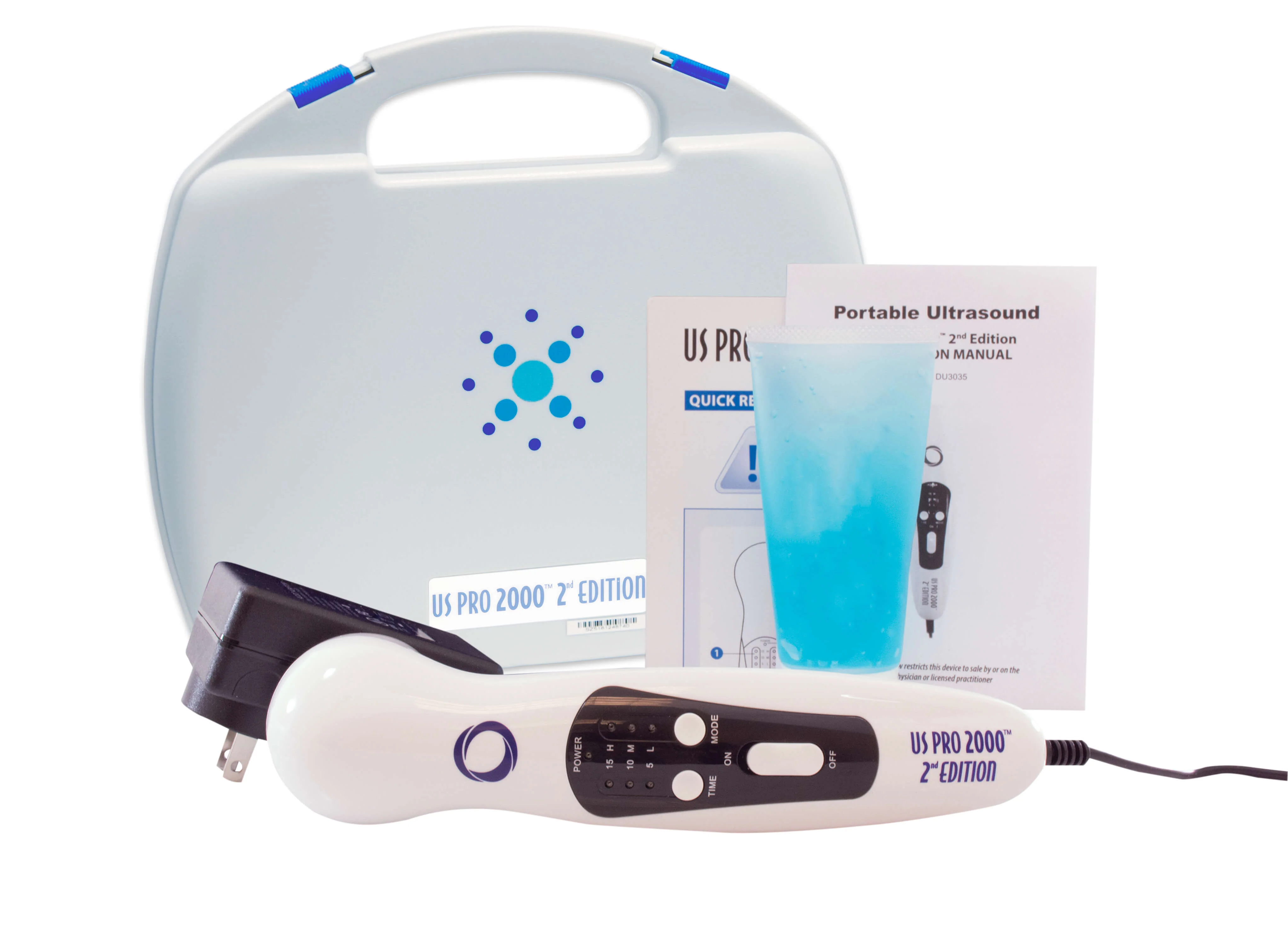

The US Pro 2000 2nd Edition is a strong and durable ultrasound in a portable carrying case, gel and an AC adapter.

The newly improved US Pro 2000 2^nd Edition is now equipped with a preheating function and a continuous mode (100% duty cycle) setting. The US Pro 2000 2^nd Edition is a portable ultrasonic therapeutic device that produces pulsed high frequency sound waves that are transferred to a specific body area through a sound head probe. Therapeutic ultrasound therapy is found to assist in relieving pain and reducing muscle spasms. The preheating function warms up the sound head applicator for increased patient and user comfort. The US Pro 2000 2^nd Edition comes with a 1-year warranty.

View the Instruction Manual:US Pro 2000 2nd Edition Instruction Manual
View the Quick Reference Guide:US Pro 2000 2nd Edition Quick Reference Guide

Features:

• Preheating Function for comfort
• Pulsed and Continuous Modes
• 3 Output Intensities
• 3 Timer Settings
• 1 Year Warranty

Technical Specifications:

Ultrasound Probe

• Ultrasound Modulation Frequency: 1.0 MHz ±10%
• Max. Output Power: 6.4W ± 20% (Modulation duty cycle at 100%)
• Output Power: (L) 0.32W±20%, (M) 3.20W±20%, (H) 6.40W±20%
• Pulse Repetition Rate: 100Hz ± 10%
• Modulation Duty Cycle: L - 5%, M - 50%, H - 100%
• Effective Radiating Area: 4.0cm² ± 20%
• Waveform: Pulsed
• BNR (Max): 5.0
• Max. Effective Intensity: 1.6W/cm² ± 20% (Modulation duty cycle at 100%)
• Effective Intensity: (L) 0.08W/cm²±20%, (M) 0.80W/cm²±20%, (H) 1.60W/cm²±20%
• Working Time: 5, 10, and 15 minutes
• Preheat Temperature: Max. 93°F±5 (35°C±5)
• Preheat Time: Max. 3 minutes
• Dimension (LxWxH): 7.95" x 1.93" x 2.76" in (202 x 49 x 70mm)
• Weight: 0.43 lbs (193g) (without adapter)
• Material of Applicator: Aluminum
