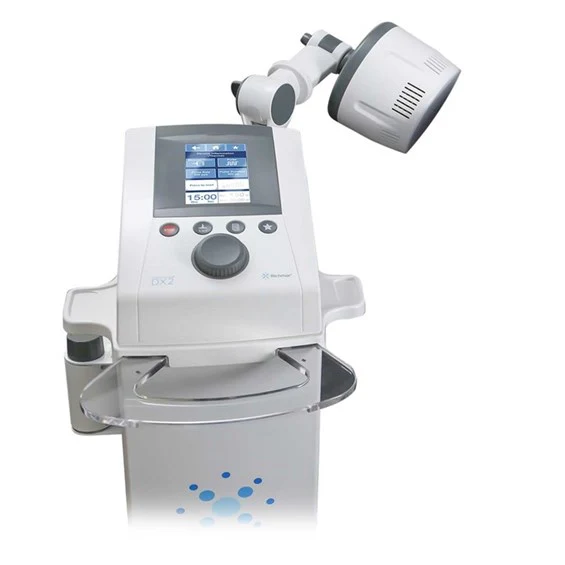

Richmar TheraTouch DX2 Shortwave Diathermy

INTRODUCING TODAY’S DIATHERMY...
AN INNOVATION IN SAFETY AND EFFICIENCY

The Richmar Difference:
Three Technologies Not Found In Any Other Device on the Market

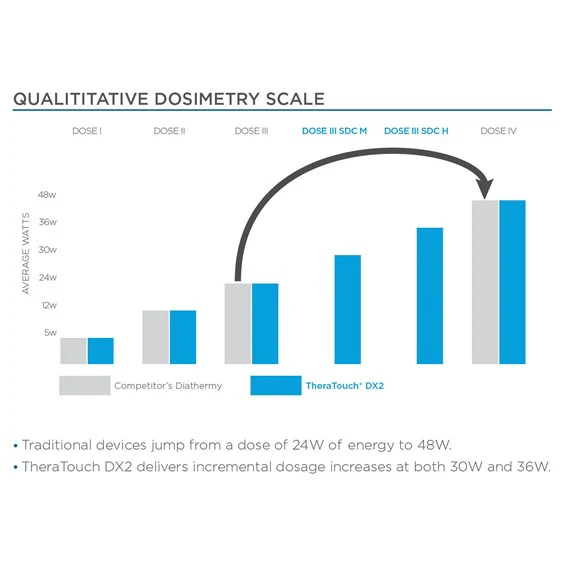

1. SDC - Scientific Dosage Control System
-- Two new and unique thermal dosimetry
programs included
-- These proprietary programs within Dose III,
provide controlled linear power increases,
yielding gentler, safer treatments
2. H.E.A.T. (High Efficiency Auto Tuning) Technology
-- The auto resonance tuning allows for
maximum energy transmission without a
higher power output
-- Efficient coupling provides more rapid
heating and shorter treatment times
3. Exclusive microcirculation indication to
promote tissue healing

ADDITIONAL FEATURES:

• 100W max power in continuous mode; 200W peak power in pulsed mode
• Dual treatment indicators on both the unit and the monode drum
• Anatomical treatment guide
• Save up to 99 user-defined favorites
• Robust 360-degree pivoting arm to withstand the everyday rigors of clinical use
• Programmed with evidence based protocols and specific patient indications

SPECIFICATIONS:

• Manufacturer Product Number: #DQSWD2
• Continuous Mode Output: 100W Average Power at 50O
• Pulsed Mode Output: 200W Peak Power at 50O
• Power: 100-240 V ~; 50/60 Hz
• Output Frequency: 27.12 MHz ± 0.6%
• Power Increment Settings: .5 W
• Pulse Width: 20 - 400 µsec in 20 µsec increments
• Pulse Frequencies: 10 - 800 Hz in 10 Hz increments
• Treatment Duration: 1 - 30 min in 1 min increments
• Electrical Class: CLASS I
• Electrical Type: TYPE BF
• Regulatory Risk Class: IIb according to MDD 93/42/EEC
