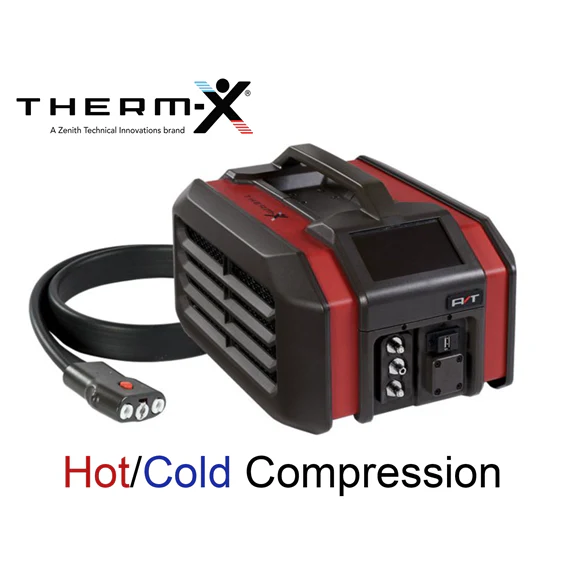

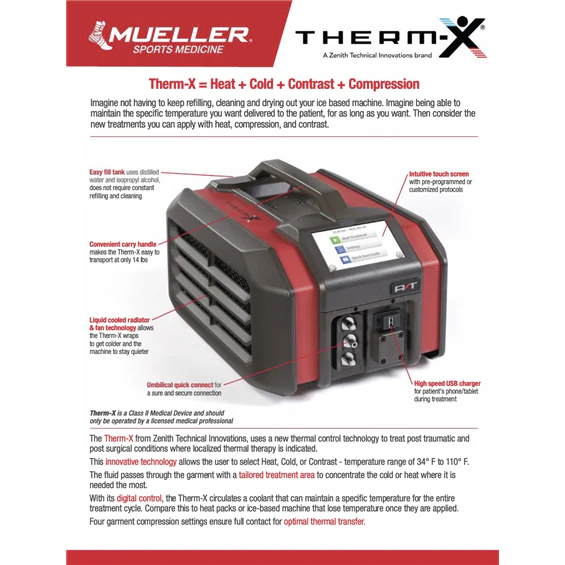

Therm-X AT Hot/Cold Compression System by Zenith/Mueller

Imagine not having to keep refilling, cleaning and drying out your ice based machine. Imagine being able to maintain the specific temperature you want delivered to the patient, for as long as you want. Then consider the new treatments you can apply with heat, compression, and contrast.

Therm-X AT combines cold, heat, contrast and compression therapy in one easily-portable machine. Designed for use in Rehabilitation and Sports Medicine, the Therm-X is designed to treat post-surgical and acute injuries in order to reduce edema, swelling and pain. The Therm-X is a flexible tool with digital accuracy when localized thermal therapy (Heating or Cooling) is indicated.

How it works:

• The Therm-X from Zenith Technical Innovations, uses a new thermal control technology to treat post traumatic and post surgical conditions where localized thermal therapy is indicated.
• This innovative technology allows the user to select Hot, Cold or Contrast with a temperature range of 34° F to 110° F.

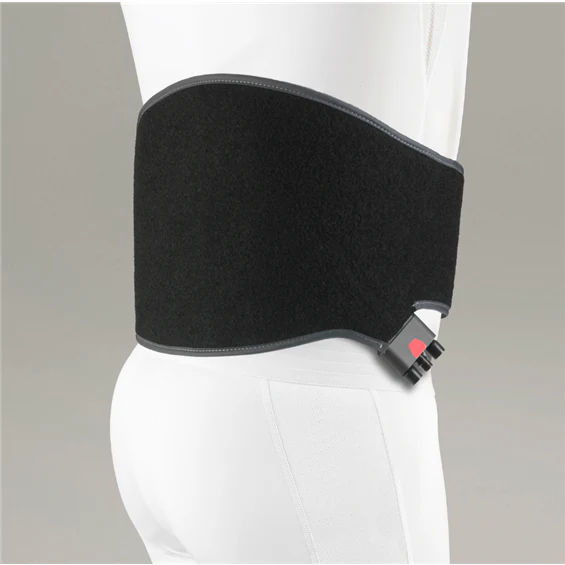

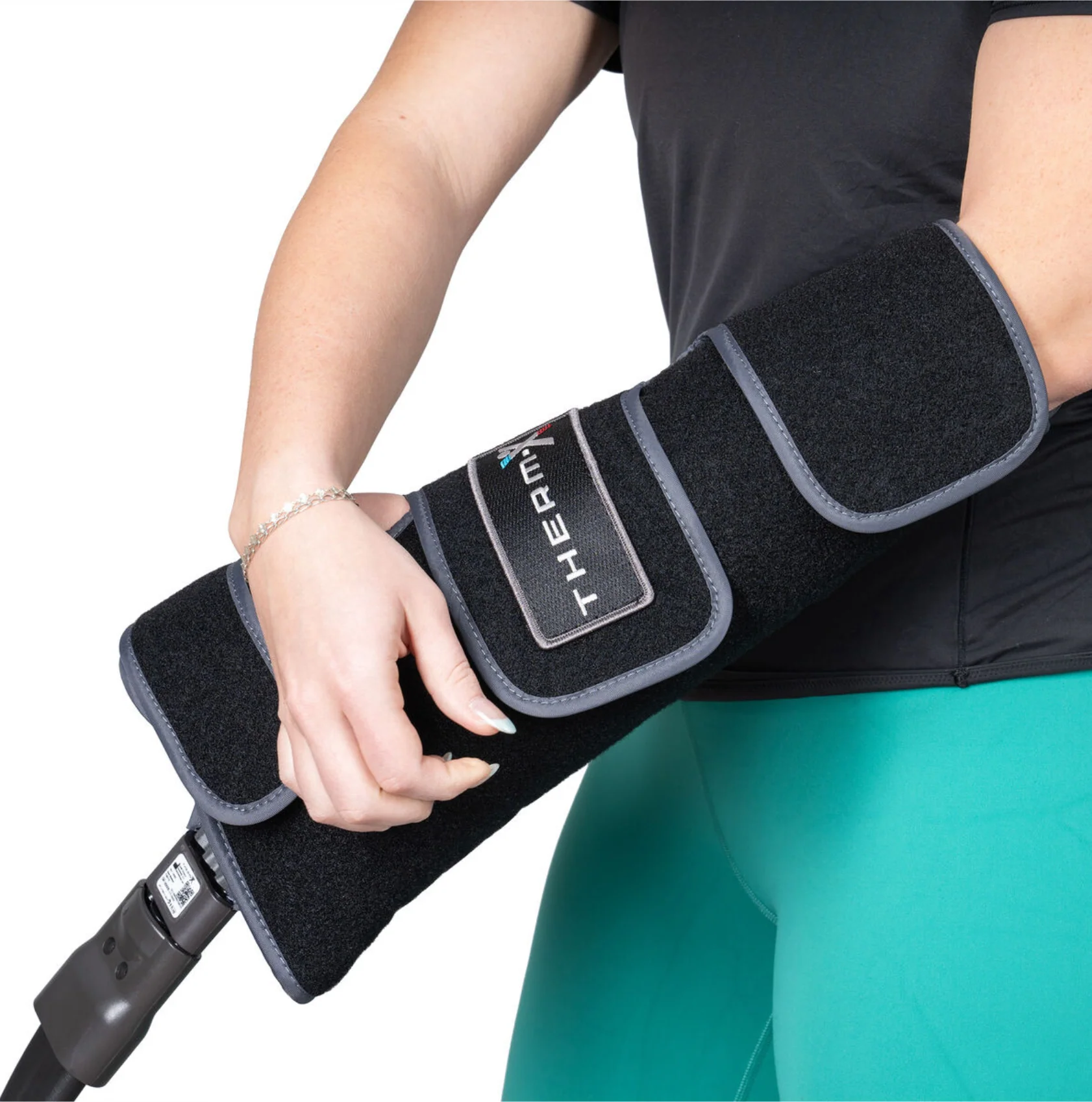

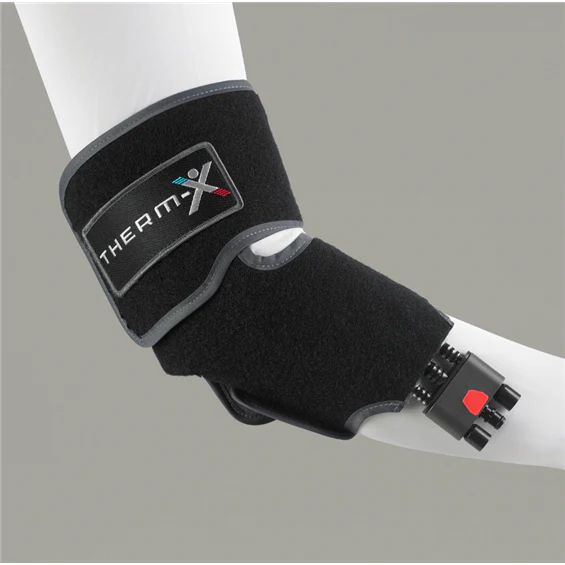

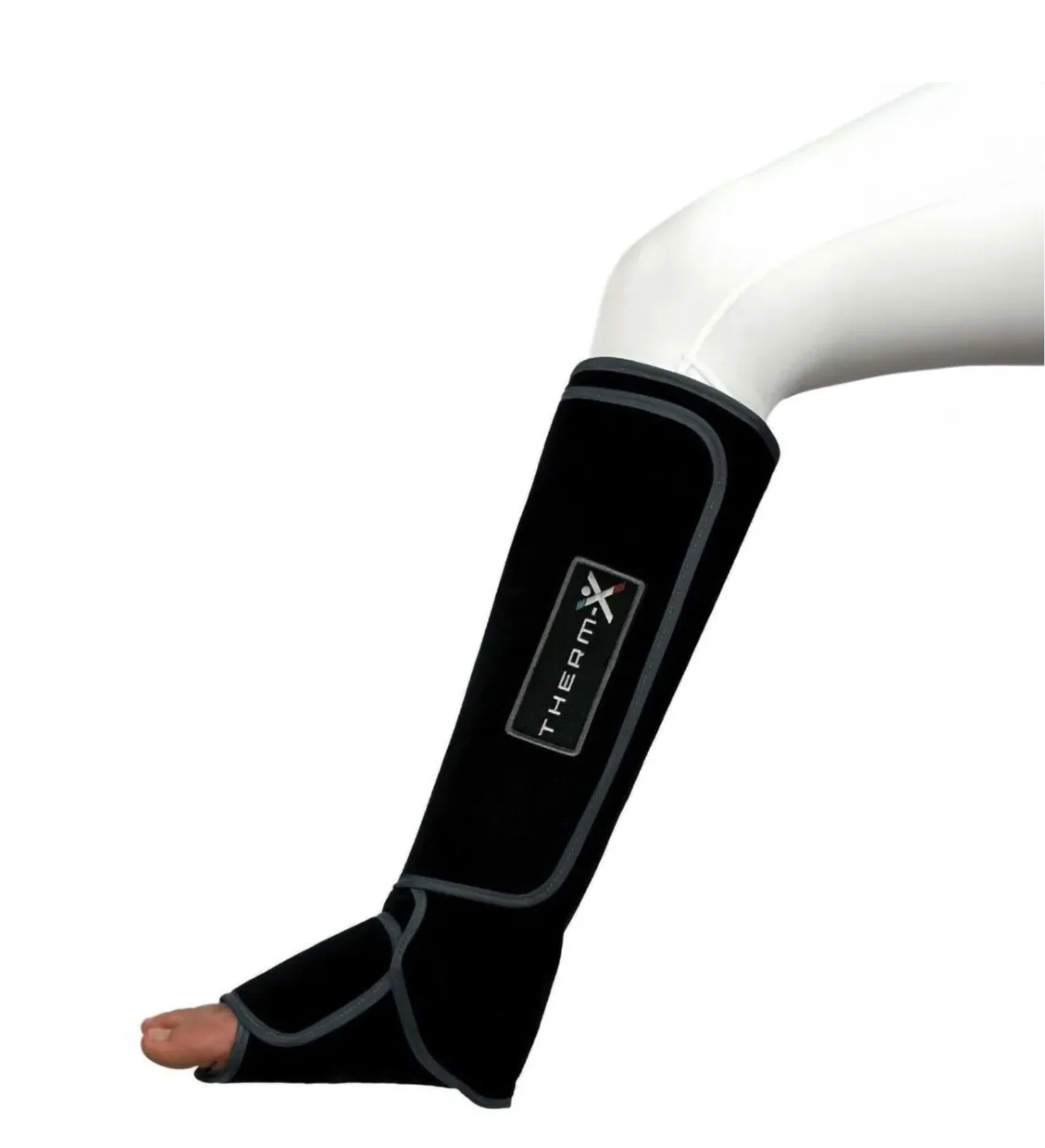

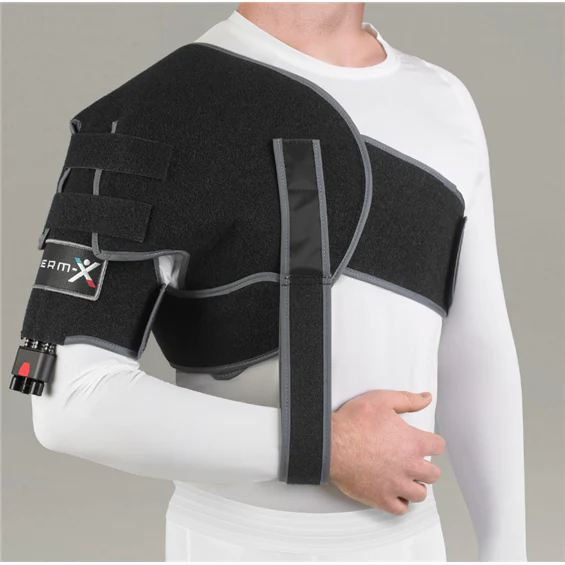

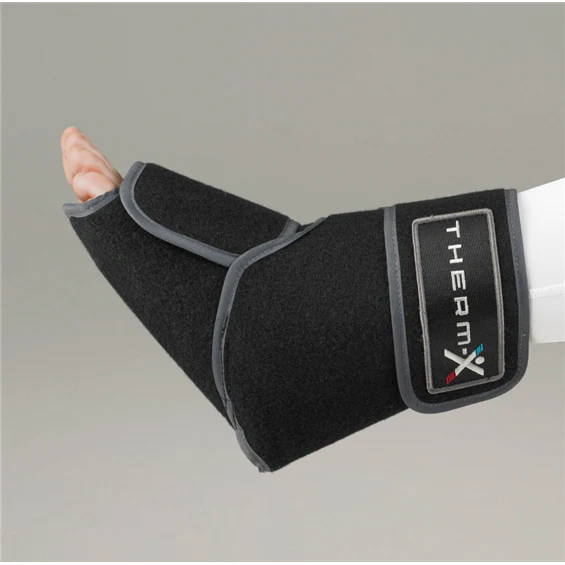

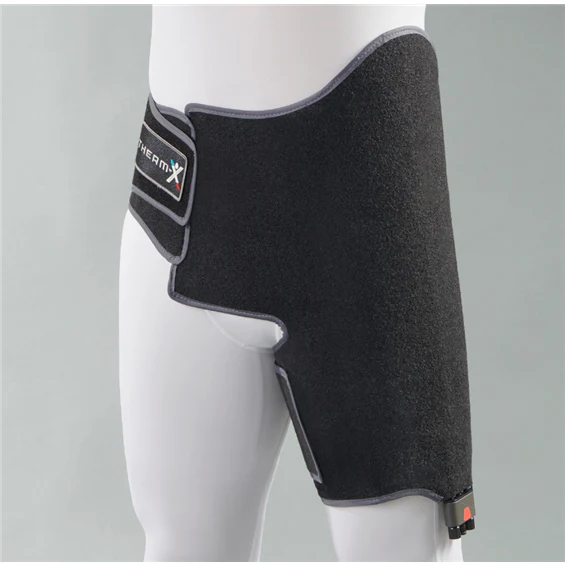

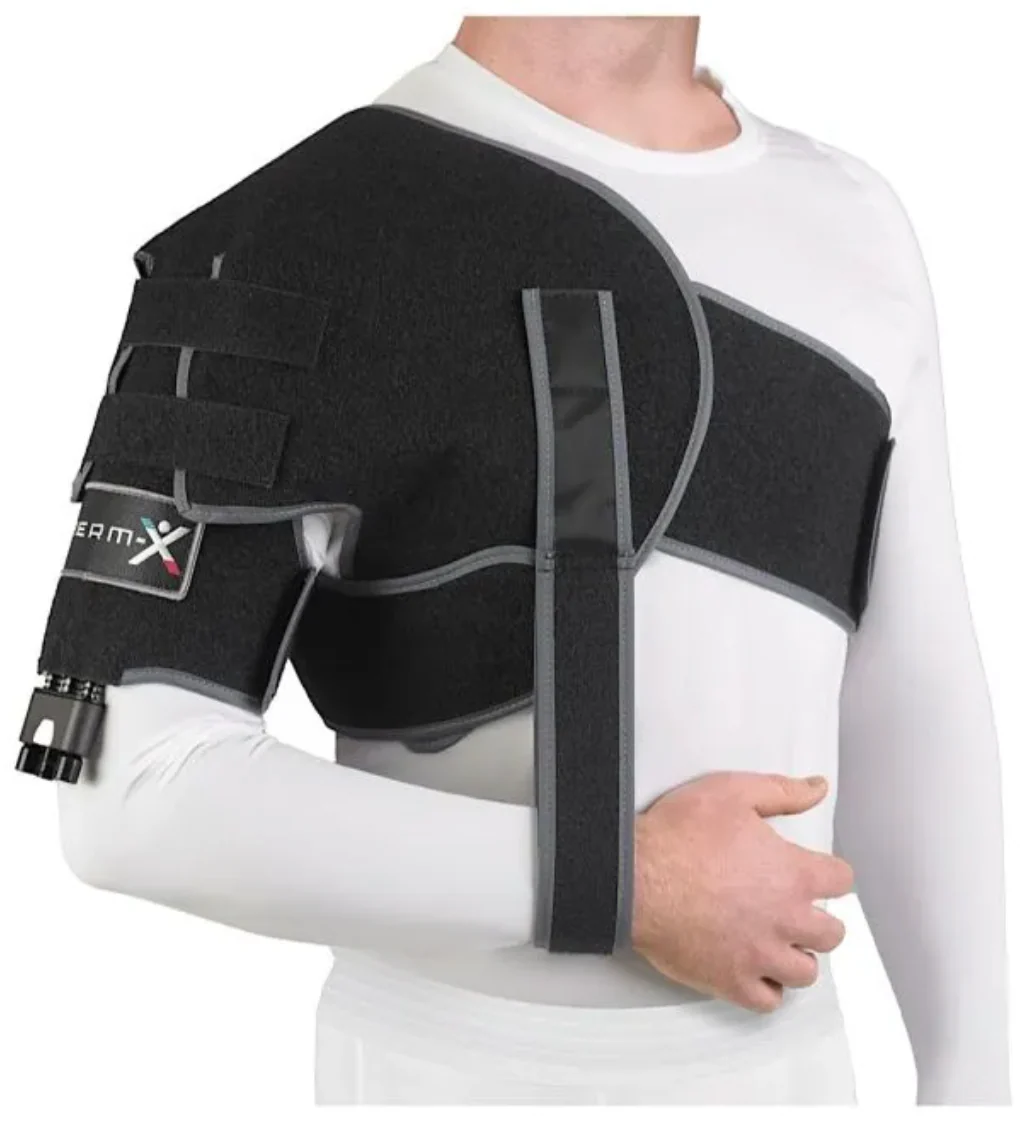

• The fluid passes through the garment with a tailored treatment area to concentrate the cold or heat where it is needed the most.
• With its digital control, the Therm-X circulates a coolant that can maintain a specific temperature for the entire treatment cycle. Compare this to heat packs or ice-based machine that lose temperature once they are applied.
• Four garment compression settings ensure full contact for optimal thermal transfer.

Features:

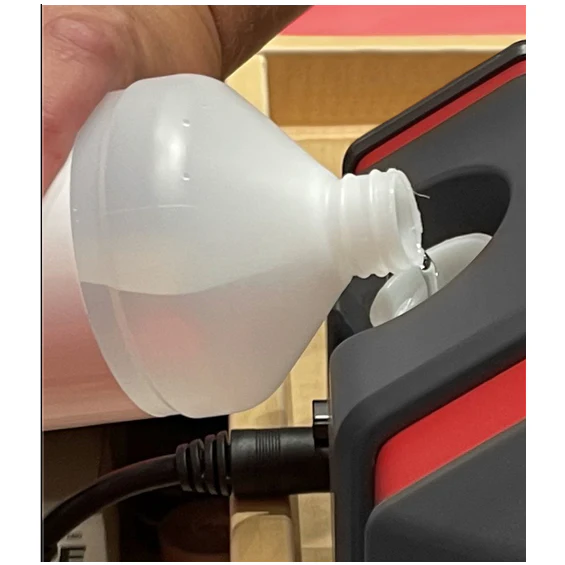

• Easy fill tank uses distilled water and isopropyl alcohol, does not require constant refilling and cleaning
• Convenient carry handle makes the Therm-X easy to transport at only 14 lbs
• Liquid cooled radiator & fan technology allows the Therm-X wraps to get colder and the machine to stay quieter

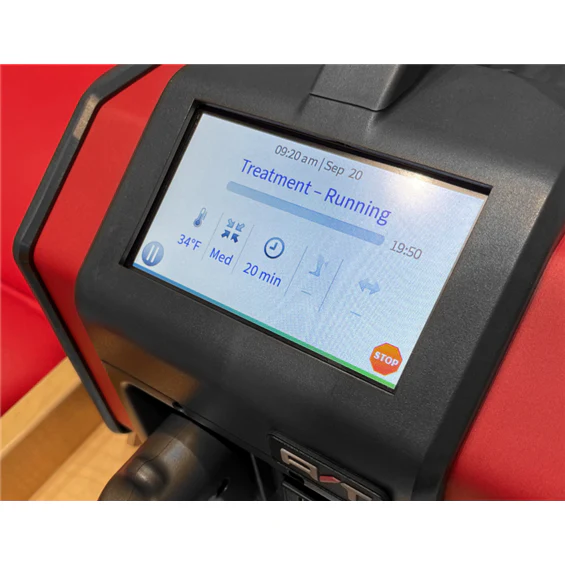

• Intuitive touch screen with pre-programmed or customized protocols

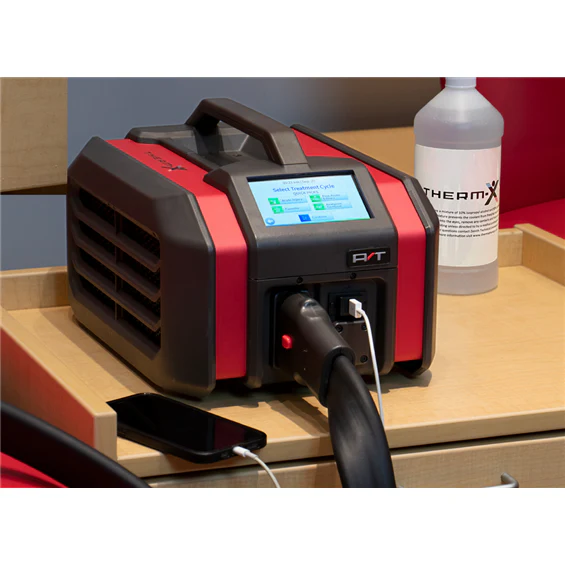

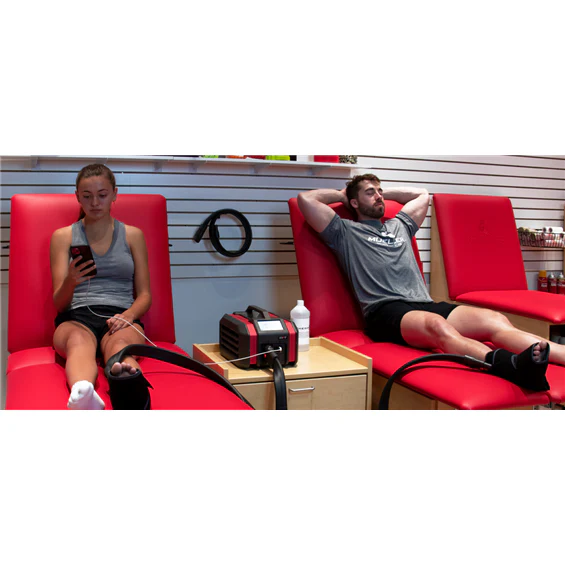

• High speed USB charger for patient’s phone/tablet during treatment

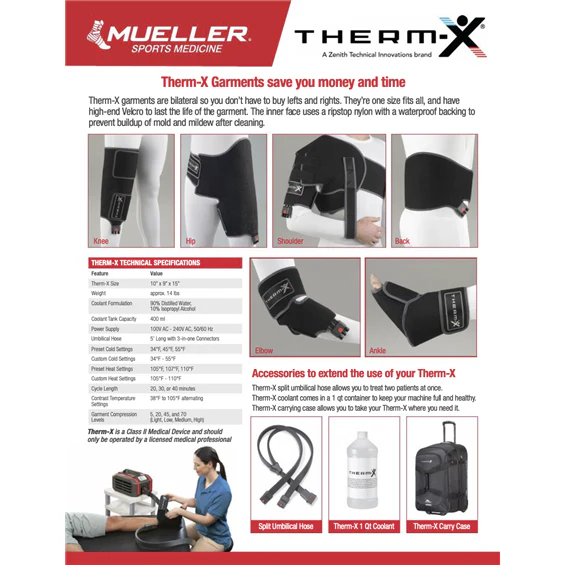

Technical Specifications

• Therm-X Size: 10” x 9” x 15”
• Weight: 14 lbs

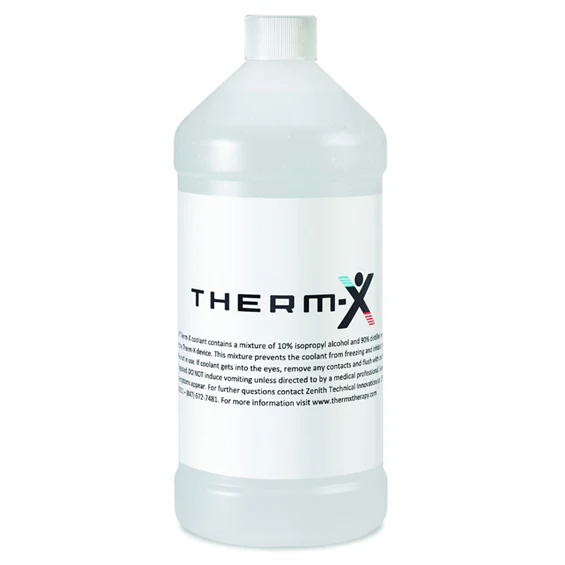

• Coolant Formulation: 90% Distilled Water, 10% Isopropyl Alcohol
• Coolant Tank Capacity: 400 ml

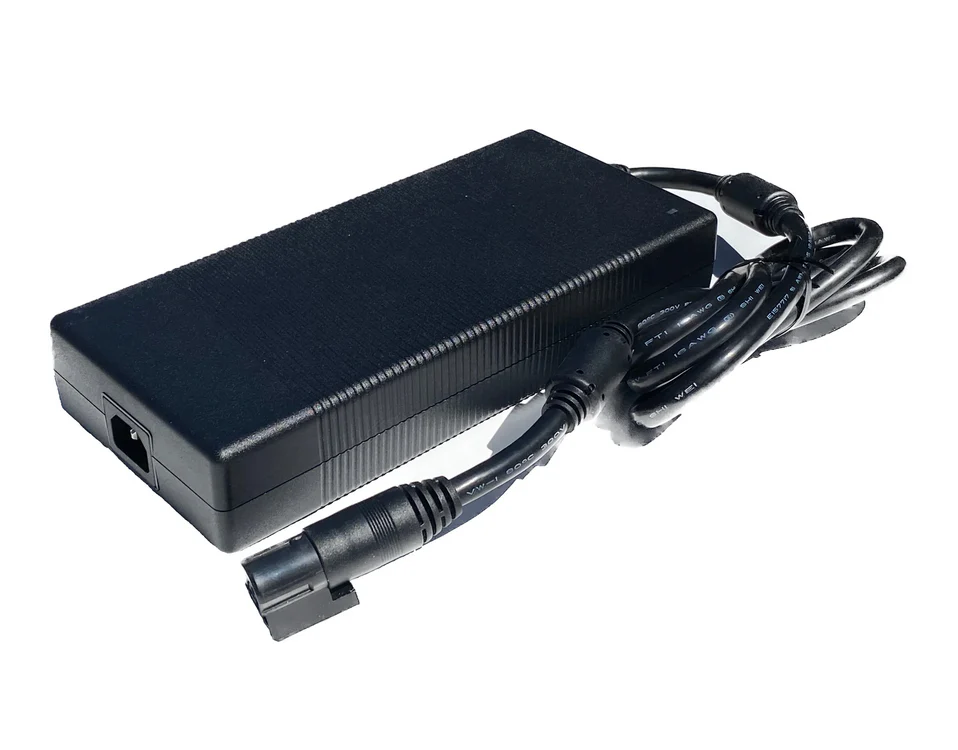

• Power Supply: 100V AC - 240V AC, 50/60 Hz
• Umbilical Hose: 5’ Long with 3-in-one Connectors
• Preset Cold Settings: 34°F, 45°F, 55°F
• Custom Cold Settings: 34°F - 55°F
• Preset Heat Settings: 105°F, 107°F, 110°F
• Custom Heat Settings: 105°F - 110°F
• Cycle Length: 20, 30, or 40 minutes
• Contrast Temperature Settings: 38°F to 105°F alternating
• Garment Compression Levels: 5, 20, 45, and 70 (Light, Low, Medium, High)

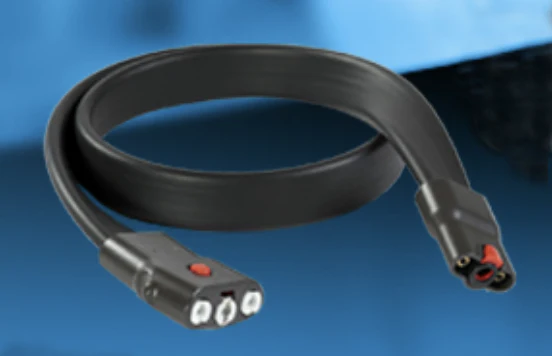

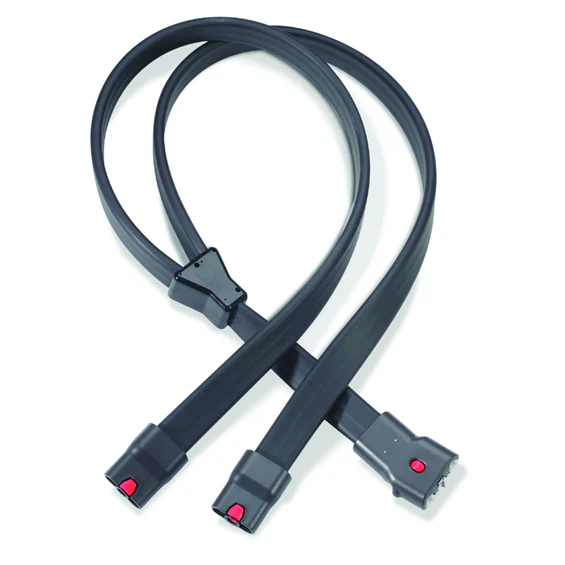

Therm-X Split Umbilical Hose

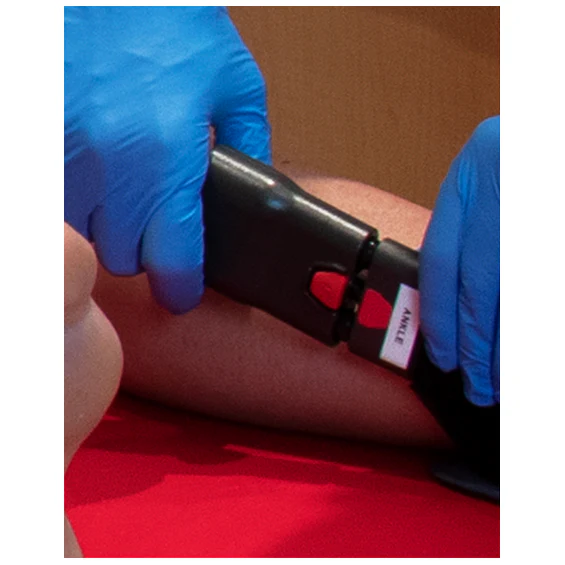

For use with the Therm-X Heat, Cold, Contrast and Compression Therapy Unit. The Therm-X Umbilical Hose acts as the connector between the Therm-X machine and Garments. The ends of the Umbilical Hose are fitted with quick connectors to ensure a secure, no leak link. The hose was designed with extra insulation to maintain the coolant temperature as it travels from machine to garment.



**Therm-X is a Class II Medical Device and should only be operated by a licensed medical professional**
