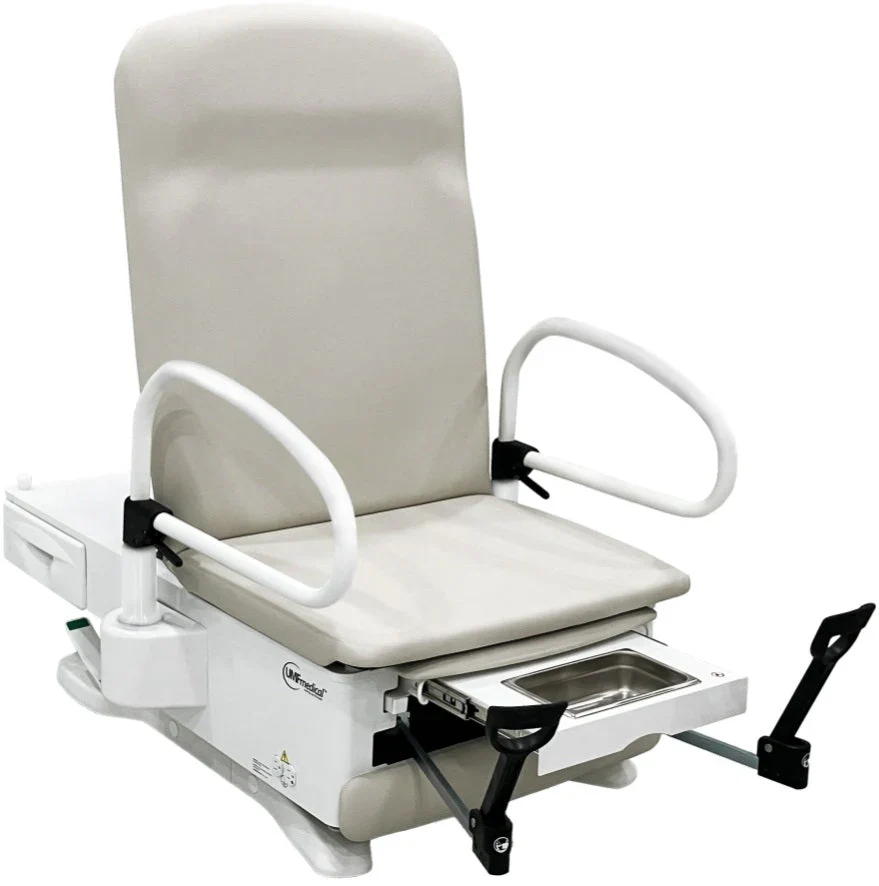

Key Features

• Power hi-lo
• 650-lb (295kg) weight capacity
• 17” (43.2cm) low-access ADA seat height with 35" (88.9cm) max.
• Classic removable, seamless upholstered top with PreFixx® Protective Finish – available in 16 colors
• One-function or two-function programmable foot control with OneTouch Patient Positioning® System and return-to-home functionality
• Single-column electromagnetic actuator
• Foldaway stirrups
• Pelvic Tilt (7°)
• 18”-21” paper roll holder (53.3 cm)
• Stainless steel debris tray – 2.5” deep (6.4 cm)
• SmoothGlideLeg™ Extension with Privacy Pull™ Loops
• Collision Detection

Specifications

• Height: min 17” (43.18 cm) max 35" (88.9 cm)

• Width: 28” (71.1 cm)

• Length: 58”–76” (147.3 cm–193 cm) with leg rest extended

• Leg rest: 18” W x 18” D (45.7 cm W x 45.7 cm D)

• Storage Drawer (Front): 18” W x 12” D x 3” H (45.7 cm x 30.5 cm x 7.6 cm)

• Storage Drawer (Side): 17.5” W x 21” D x 5” H (44.5 cm x 53.3 cm x 12.7 cm)
• Single-column, electro-magnetic actuator

• Electrical: 120 VAC 10.5 AMP / 220 VAC 5.8 AMP, 50-60Hz

• Patient weight capacity: 650 lbs. (295 kg)

• Net weight: 350 lbs. (159 kg)

• Shipping weight: 390 lbs. (177 kg)

• Shipping dimensions: 32” W x 64” L x 31” H (81.2 cm x 162.6 cm x 78.7 cm)

ACCESSORIES - SEARCH THE BELOW ITEM NUMBERS & ADD TO CART:

• 047-251 — Bierhoff Knee Crutches (Pair)

• 047-252 — Locking Knee Crutches (Pair)

• 047-587 — ADA-compliant TruComfort™ Support Rails

• 047-588 — ADA-compliant TruComfort+™ Support Rails with blood pressure position

• 047-592 — Welch Allyn Light Bracket (Patient Left)

• 047-593 — Welch Allyn Light Bracket (Patient Right)
